75 ft. Track Mounted Spider Lift

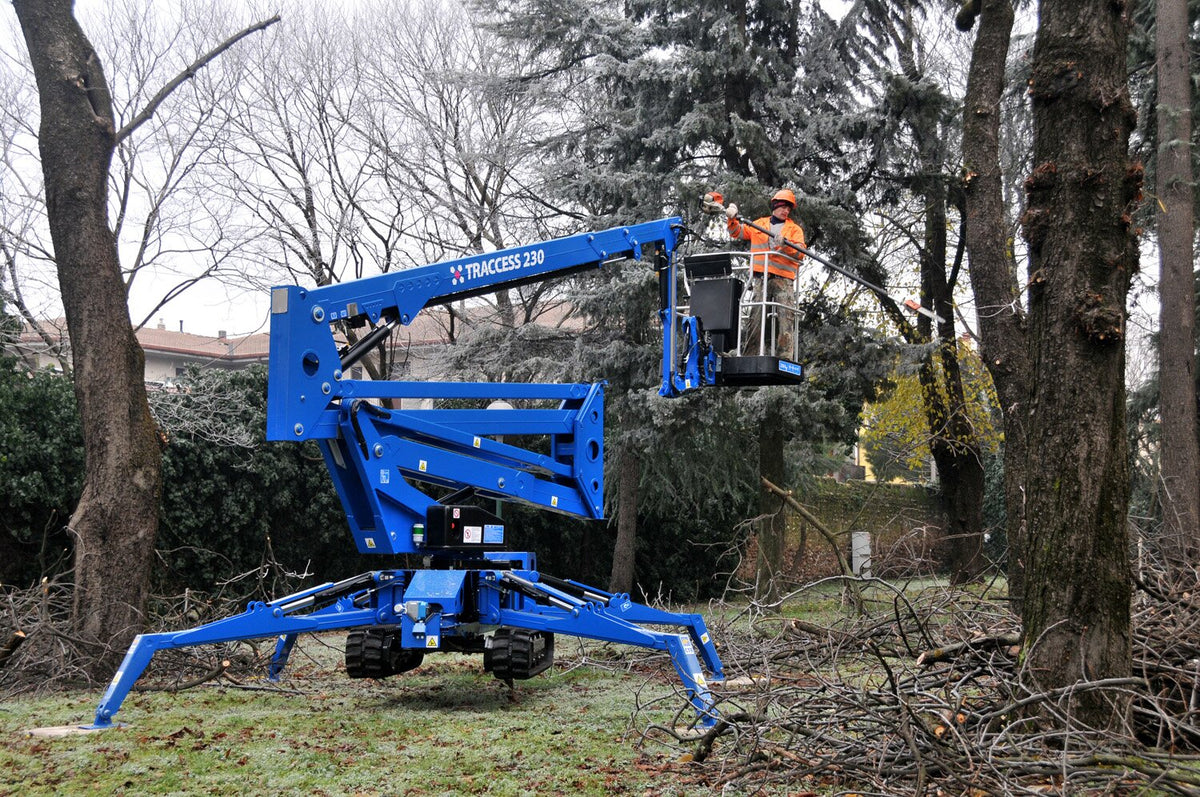

The CTE Traccess 230-75 is a high-performance track-mounted spider lift built for extreme access in tight or sensitive environments. Combining impressive working height with a compact, lightweight design, this lift can pass through narrow gates and doorways while delivering outstanding reach and stability.
Its advanced articulating and telescopic boom system provides excellent up-and-over capability, making it ideal for tree work, building maintenance, and complex access jobs. The tracked undercarriage minimizes ground pressure, allowing operation on delicate surfaces such as turf, tile, and interior flooring.
Equipped with hydraulic outriggers and multiple setup configurations, the 230-75 can safely level and operate on uneven terrain. Its hybrid power system (gas/diesel + electric) allows for both outdoor performance and quiet, zero-emission indoor use when needed.
- Max Working Height: 75 ft
- Max Platform Height: 69 ft
- Horizontal Outreach: 39 ft
- Platform Capacity: 440 lbs
- Machine Weight: ~6,400 lbs
- Machine Width (Stowed): 31 in (fits through gates/doors)
- Machine Length: 17 ft 5 in
- Stowed Height: 6 ft 6 in
- Outrigger Footprint (Max): ~12.5 ft x 11.5 ft
- Setup Options: Multiple outrigger positions for tight access
-
Power Source: Hybrid system
- Gas or diesel engine
- 48V electric / lithium operation
- Drive Type: Rubber track drive (low ground pressure)
- Gradeability: ~30%
- Travel Speed: ~1.2 mph
