Specifications
Adhesive Type Polyurethane
Alternative Sale Availability 2. This item can be sold to consumers and industrial and there are no VOC restrictions.
Application Method Hand or pressure caulk
Brand 3M™
Color Family Beige
Container Size (Imperial) 0.1 Gal. (US)
Cure Time 24 hr
Full Cure Time 3mm per 5 day
Hardness 68 Shore A
Industries Marine
Physical Form Medium paste
Product Color Tan
Product Form Cartridge
Solids Weight Percent (Approximate) 97 Percent
Substrate 1 ABS, Acrylic, Aluminum, Cold Rolled Steel, Concrete, Gel Coat, Green FRP, Painted Surface, Polycarbonate, Polypropylene, Powder Coated Metal, PVC, Stainless Steel, Wood
Substrate 2 ABS, Acrylic, Aluminum, Cold Rolled Steel, Concrete, Gel Coat, Green FRP, Painted Surface, Polycarbonate, Polypropylene, Powder Coated Metal, PVC, Stainless Steel, Wood
Tack-free Time 48 Hour
Tensile Strength (Imperial) 700 psi
Units per Case 12
Volatile Organic Compounds (VOCs) See Safety Data Sheet, Regulatory Data Sheet
Details
Permanent bonding – above and below the waterline
Industry standard for over 50 years
Offers extended working time
Achieves handling strength in 48 hours

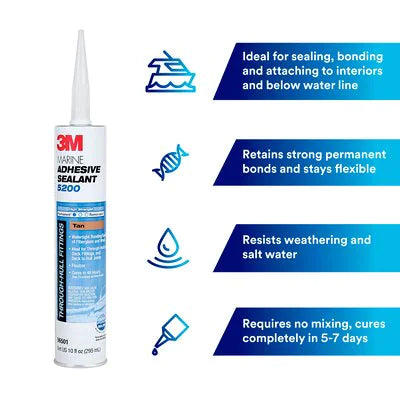

Tough and flexible polyurethane polymer forms strong bonds
Capable of retaining strong bonds during vibration, swelling, shrinking or shock

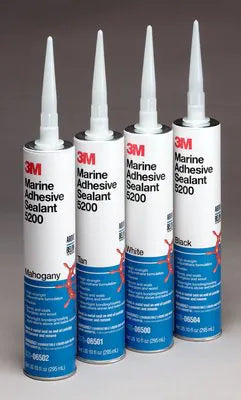

This product comes in tan
3M™ Marine Adhesive Sealant 5200 is a one-component, high-strength, moisture-curing, gap-filling polyurethane for permanent bonding of wood, gelcoat and fiberglass. It cures to form a firm, rubbery, waterproof seal on joints and boat hardware, above and below the waterline. This product has been trusted throughout the marine industry for over 50 years.
Tough and Flexible to Form Strong Bonds
Forming watertight seals, 3M™ Marine Adhesive Sealant 5200 offers permanent adhesion to wood, gelcoat and fiberglass. In addition, our marine adhesive sealant is flexible and allows for structural movement and dissipation of stress that may be caused by vibration, swelling, shrinking or shock. Available in both cartridge and sausage packs to meet your application requirements.
Recommended Applications
Fiberglass deck to hull
Through hull fittings
Wood to fiberglass
Portholes and deck fittings
Motors on fiberglass transoms
Under moldings
Hull seams above and below water line
Deck housing
Combats Vibrations, Swelling, Shrinking and Shock
3M™ Marine Adhesive Sealant 5200 is designed to meet the high demands of the marine environment, making it ideal for creating tough bonds resistant to saltwater and weathering. We formulated our sealant to provide an exceptionally strong solution for marine conditions as well as flexibility that combats vibrations, swelling, shrinking or shock. Once again, despite the barriers of a rough marine environment, 3M looked to science to provide a reliable, durable solution.
Designed to Endure Marine Environments
3M™ Marine Adhesive Sealant 5200 is a part of our broad range of adhesive sealants uniquely formulated for the marine market. Designed for reliable performance, 3M Marine Adhesive Sealant 5200 is the most trusted sealant in the industry for permanent, high strength bonding.
Understanding Polyurethane Sealants

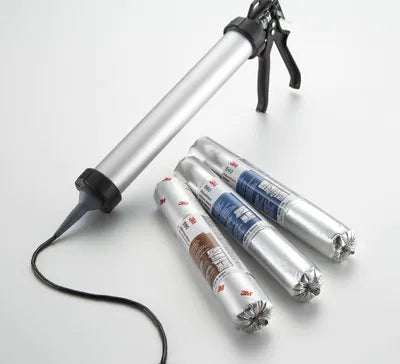

Polyurethane sealants provide strong, flexible durable elastomeric bonds that seal against the elements. These sealants excel in challenging industrial, transportation and construction applications. Polyurethane sealants are available in a wide variety of Shore A hardness, open time and colors to meet many application needs. Choose a 3M Manual or Pneumatic Applicator for dispensing 3M adhesives sealant cartridges and 400ml/600ml sausage packs.
