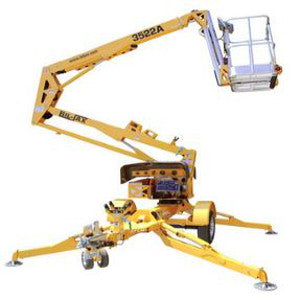

Haulotte 3522A Z-Boom Lift
The articulating boom structure coupled with the telescopic primary boom makes the 3522 an industry leader in outreach and working envelope. The auto levelling System is "self-levelling" and the system allows the machine to be set-up in less than 40 seconds. Features include a tilt alarm/sensor, AC wiring to platform, mechanical surge brakes and a parking brake. The lift is battery powered and comes with a 115 volt charger.
*Hitch Requirement: 2" Trailer Ball, 4 Way flat four light connector*
- Working height 41 ft 9 in
- Platform height 35 ft 9 in
- Horizontal outreach (from centerline) 22 ft 6 in
- Horizontal outreach (from edge of footpad) 17 ft 5 in
- Up and over height 19 ft
- Lift capacity 500 lbs
- Length - stowed 16 ft 3 in
- Width stowed 5 ft 6 in
- Height stowed 6 ft 8 in
- Platform size 4 ft 1 in x 2 ft 9 in
