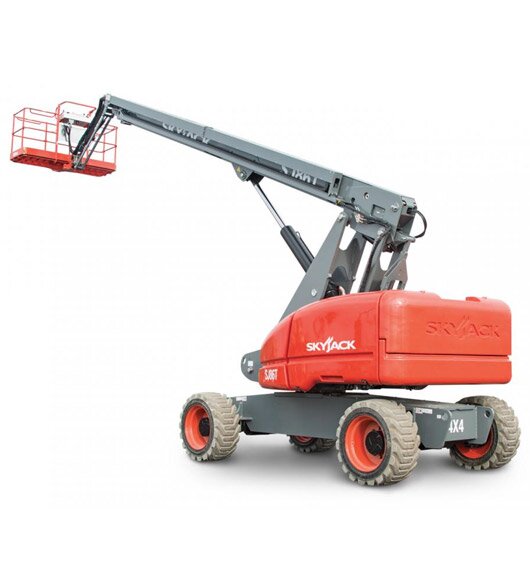

85 ft Telescopic Boom Lift
Skyjack SJ86T Boom Lift Specifications
· Work Height: 92 ft (28.04 m)
· Platform Height: 86 ft (26.21 m)
· Horizontal Reach: 76 ft 10 in (23.42 m)
· Platform Size: 36 in x 96 in (0.91 m x 2.44 m)
· Stowed Width: 8 ft 2 in (2.49 m)
· Tailswing: 4 ft 8 in (1.42 m)
· Stowed Height: 9 ft 10 in (3.00 m)
· Transportation Height: 10 ft 3 in (3.13 m)
· Stowed Length: 42 ft 6 in (12.95 m)
· Transportation Length: 34 ft 9 in (10.59 m)
· Wheelbase: 11 ft (3.35 m)
· Ground Clearance: 16 in (0.41 m)
· Jib Length: 5 ft 6 in (1.68 m)
· Weight: Approximately 37,800 lbs (17,550 kg)
· Gradeability: 45%
· Turning Radius (Inside): 11 ft 6 in (3.51 m)
· Turning Radius (Outside): 21 ft (6.40 m)
· Axle Oscillation: 4 in (10.16 cm)
· Drive Speed (High Speed): 3 mph (4.8 km/h)
· Platform Capacity: 500 lbs / 750 lbs (227 kg / 341 kg)
· Maximum Wind Rating: 28 mph (12.5 m/s)
· Personnel Rating at Max Wind Rating: 2 / 3 persons
· Tire Type: Foam-filled
· Tire Size: 18-625
· Diesel Engine: Deutz TD2.9L – 74 HP (55 kW)
· Fuel Tank Capacity: 45 gal (170 L)
· Hydraulic Reservoir: 60 gal (227 L)
