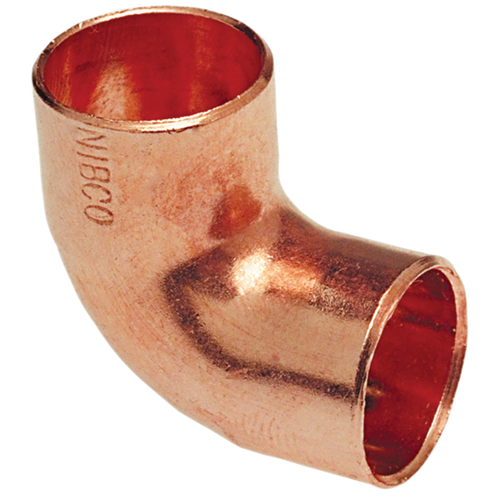

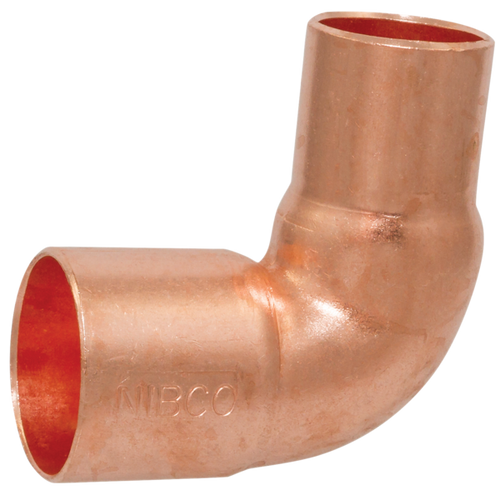

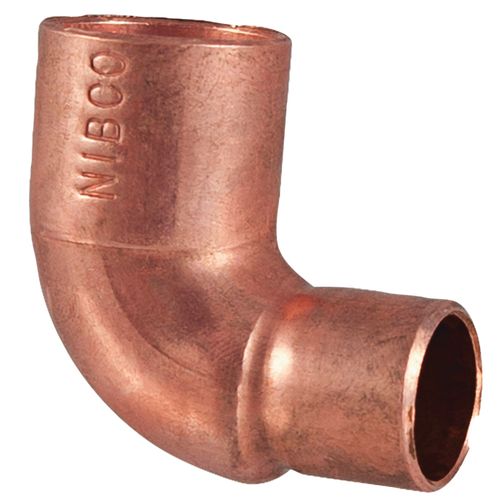

Nibco 90° Elbow Close Rough C x C - Wrot
SKU: 12C90
The NIBCO® lead-free* wrot copper solder pressure 90-degree close rough elbow is used in residential and commercial systems such as potable water, air conditioning and refrigeration. Options also include cleaned and bagged for oxygen service (medical gas).
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200
- NSF/ANSI/CAN-61 and 372
- Material and workmanship per ASME B16.22
- Material, workmanship and dimensions per MSS SP-104
- Material, workmanship and dimensions per MSS SP-109 (5" to 8")
- NFPA 99 Health Care Facilities Gas and Vacuum Systems and the Compressed Gas Association, Pamphlet G4.1 (medical gas)
- UL 207 Recognized to 700 PSI (select diameters)
| SIZE | DESCRIPTION | UPC | NIBCO NO. | CAD/BIM |
|---|---|---|---|---|
| 1/8 in. x 1/8 in. | 607 1/8 CXC 90 ELBOW WROT | 039923312600 | 9055200 | CAD |
| 1/8 in. x 1/8 in. | 607-CB 1/8 CXC 90 ELBOW WROT | 039923303172 | 9055200CB | CAD |
| 1/4 in. x 1/4 in. | 607 1/4 CXC 90 ELBOW WROT | 039923312624 | 9055250 | CAD |
| 1/4 in. x 1/4 in. | 607-CB 1/4 CXC 90 ELBOW WROT | 039923303196 | 9055250CB | CAD |
| 3/8 in. x 3/8 in. | 607 3/8 CXC 90 ELBOW WROT | 039923312662 | 9055350 | CAD |
| 3/8 in. x 3/8 in. | 607-CB 3/8 CXC 90 ELBOW WROT | 039923303219 | 9055350CB | CAD |
| 1/2 in. x 1/2 in. | 607 1/2 CXC 90 ELBOW WROT | 039923312723 | 9055450 | CAD |
| 1/2 in. x 1/2 in. | 607-CB 1/2 CXC 90 ELBOW WROT | 039923303226 | 9055450CB | CAD |
| 1/2 in. x 3/8 in. | 607R 1/2X3/8 CXC 90 ELBOW WROT | 039923312747 | 9055500 | CAD |
| 1/2 in. x 3/8 in. | 607R-CB 1/2X3/8 CXC 90 ELBOW WROT | 039923303233 | 9055500CB | CAD |
| 5/8 in. x 3/8 in. | 607R 5/8X3/8 CXC 90 ELBOW WROT | 039923415493 | 9055545 | CAD |
| 3/4 in. x 3/4 in. | 607 3/4 CXC 90 ELBOW WROT | 039923312884 | 9055600 | CAD |
| 3/4 in. x 3/4 in. | 607-CB 3/4 CXC 90 ELBOW WROT | 039923303257 | 9055600CB | CAD |
| 3/4 in. x 5/8 in. | 607R 3/4X5/8 CXC 90 ELBOW WROT | 039923415431 | 9055625 | CAD |
| 3/4 in. x 1/2 in. | 607R 3/4X1/2 CXC 90 ELBOW WROT | 039923312907 | 9055650 | CAD |
| 3/4 in. x 1/2 in. | 607R-CB 3/4X1/2 CXC 90 ELBOW WROT | 039923303271 | 9055650CB | CAD |
| 7/8 in. x 7/8 in. | 607 7/8 CXC 90 ELBOW WROT | 039923300188 | 9055700 | CAD |
| 1 in. x 1 in. | 607 1 CXC 90 ELBOW WROT | 039923312969 | 9055750 | CAD |
| 1 in. x 1 in. | 607-CB 1 CXC 90 ELBOW WROT | 039923303288 | 9055750CB | CAD |
| 1 in. x 3/4 in. | 607R 1X3/4 CXC 90 ELBOW WROT | 039923312983 | 9055800 | CAD |
| 1 in. x 3/4 in. | 607R-CB 1X3/4 CXC 90 ELBOW WROT | 039923303295 | 9055800CB | CAD |
| 1 in. x 1/2 in. | 607R 1X1/2 CXC 90 ELBOW WROT | 039923393852 | 9055870 | CAD |
| 1 in. x 1/2 in. | 607R-CB 1X1/2 CXC 90 ELBOW WROT | 039923393906 | 9055870CB | CAD |
| 1-1/4 in. x 1-1/4 in. | 607 11/4 CXC 90 ELBOW WROT | 039923078599 | 9055950 | CAD |
| 1-1/4 in. x 1-1/4 in. | 607-CB 11/4 CXC 90 ELBOW WROT | 039923303318 | 9055950CB | CAD |
| 1-1/4 in. x 1 in. | 607R 11/4X1 CXC 90 ELBOW WROT | 039923393869 | 9056110 | CAD |
| 1-1/4 in. x 1 in. | 607R-CB 11/4X1 CXC 90 ELBOW WROT | 039923393883 | 9056110CB | CAD |
| 1-1/2 in. x 1-1/2 in. | 607 11/2 CXC 90 ELBOW WROT | 039923078711 | 9056150 | CAD |
| 1-1/2 in. x 1-1/2 in. | 607-CB 11/2 CXC 90 ELBOW WROT | 039923303325 | 9056150CB | CAD |
| 1-1/2 in. x 1-1/4 in. | 607R 11/2X11/4 CXC 90 ELBOW WROT | 039923313164 | 9056200 | CAD |
| 1-1/2 in. x 1-1/4 in. | 607R-CB 11/2X11/4 CXC 90 ELBOW WROT | 039923303332 | 9056200CB | CAD |
| 2 in. x 2 in. | 607 2 CXC 90 ELBOW WROT | 039923078704 | 9056400 | CAD |
| 2 in. x 2 in. | 607-CB 2 CXC 90 ELBOW WROT | 039923303349 | 9056400CB | CAD |
| 2 in. x 1-1/2 in. | 607R 2X11/2 CXC 90 ELBOW WROT | 039923313249 | 9056450 | CAD |
| 2 in. x 1-1/2 in. | 607R-CB 2X11/2 CXC 90 ELBOW WROT | 039923303356 | 9056450CB | CAD |
| 3/8 in. x 1/4 in. | 607R 3/8X1/4 90 DEG ELBOW WROT | 039923415486 | 9056465 | CAD |
| 2-1/2 in. x 2-1/2 in. | 607 21/2 CXC 90 ELBOW WROT | 039923313300 | 9056650 | CAD |
| 2-1/2 in. x 2-1/2 in. | 607-CB 21/2 CXC 90 ELBOW WROT | 039923303370 | 9056650CB | CAD |
| 3 in. x 3 in. | 607 3 CXC 90 ELBOW WROT | 039923313386 | 9056900 | CAD |
| 3 in. x 3 in. | 607-CB 3 CXC 90 ELBOW WROT | 039923303394 | 9056900CB | CAD |
| 3-1/2 in. x 3-1/2 in. | 607 31/2 CXC 90 ELBOW WROT | 039923313461 | 9057100 | CAD |
| 4 in. x 4 in. | 607 4 CXC 90 ELBOW WROT | 039923313522 | 9057200 | CAD |
| 4 in. x 4 in. | 607-CB 4 CXC 90 ELBOW WROT | 039923303400 | 9057200CB | CAD |
| 5 in. x 5 in. | 607 5 CXC 90 ELBOW WROT | 039923313607 | 9057300 | CAD |
| 5 in. x 5 in. | 607-CB 5 CXC 90 ELBOW WROT | 039923303417 | 9057300CB | CAD |
| 6 in. x 6 in. | 607 6 CXC 90 ELBOW WROT | 039923313683 | 9057400 | CAD |
| 6 in. x 6 in. | 607-CB 6 CXC 90 ELBOW WROT | 039923303431 | 9057400CB | CAD |
| 8 in. x 8 in. | 607 8 CXC 90 ELBOW WROT | 039923313713 | 9057500 | CAD |
| 8 in. x 8 in. | 607-CB 8 CXC 90 ELBOW WROT | 039923303455 | 9057500CB | CAD |
